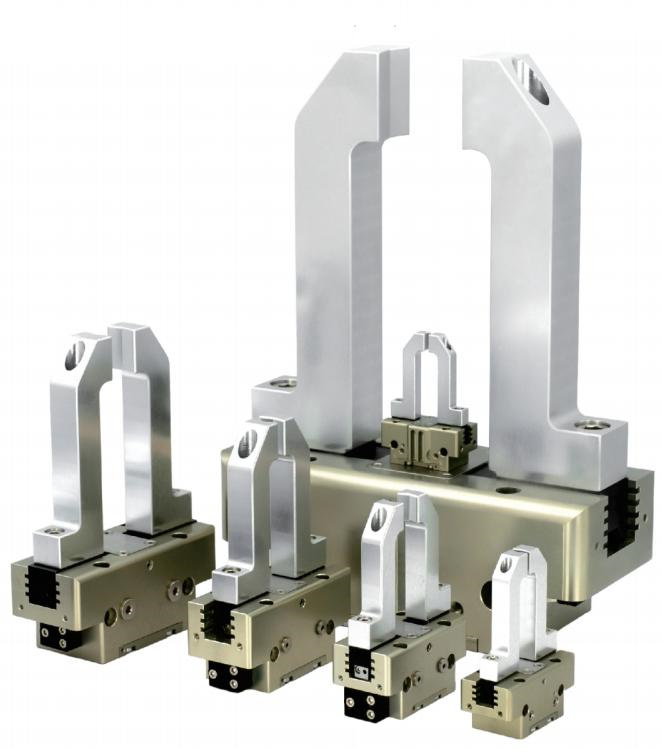

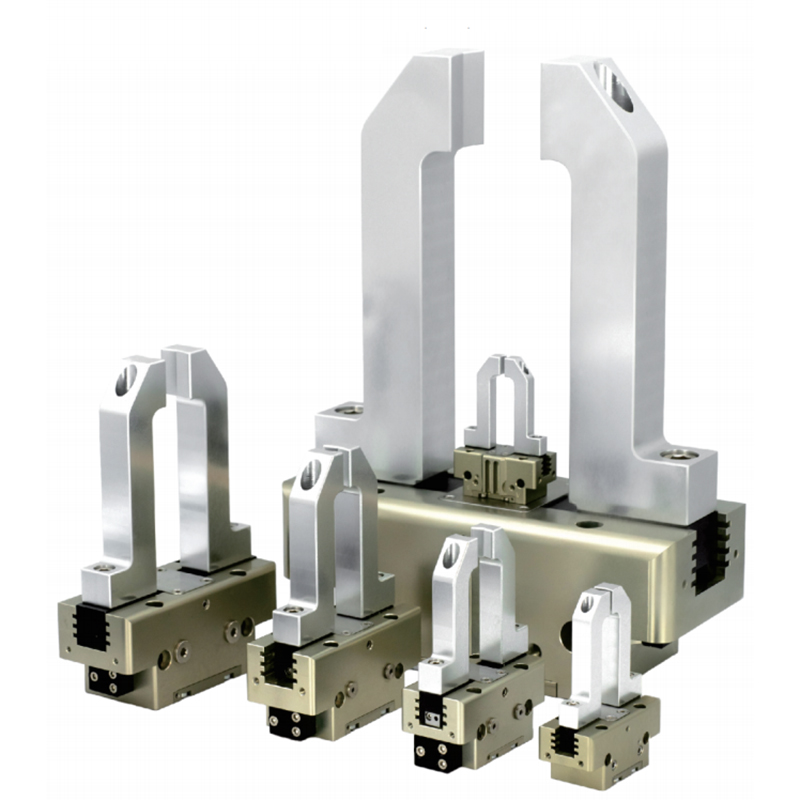

Mechanical gripper
The use of compressed air as a power clamp or grasp the workpiece of the execution device, can replace the hand to grasp the work, for different shapes, sizes, weights and materials of the items, the perfect combination of grasping force and grasping stroke, improve the stability of the production process.
Our grasping and gripping systems meet the needs of safe, flexible and efficient production processes.
The multi-tooth guide rail is perfectly combined with the ladder structure to meet the load of greater moments and bending moments.
The unique coating process ensures the accuracy of tens of millions of grinding times
Unique self-lubricating design for longer maintenance-free service life.
Trapezoidal skeleton structure, better deformation resistance;
Multi-tooth guide rail design, to provide greater clamping force;
Sensitive sensor sensing block, finger opening and closing flexible perception;
Self-lubricating design,longer maintenance-free service life;

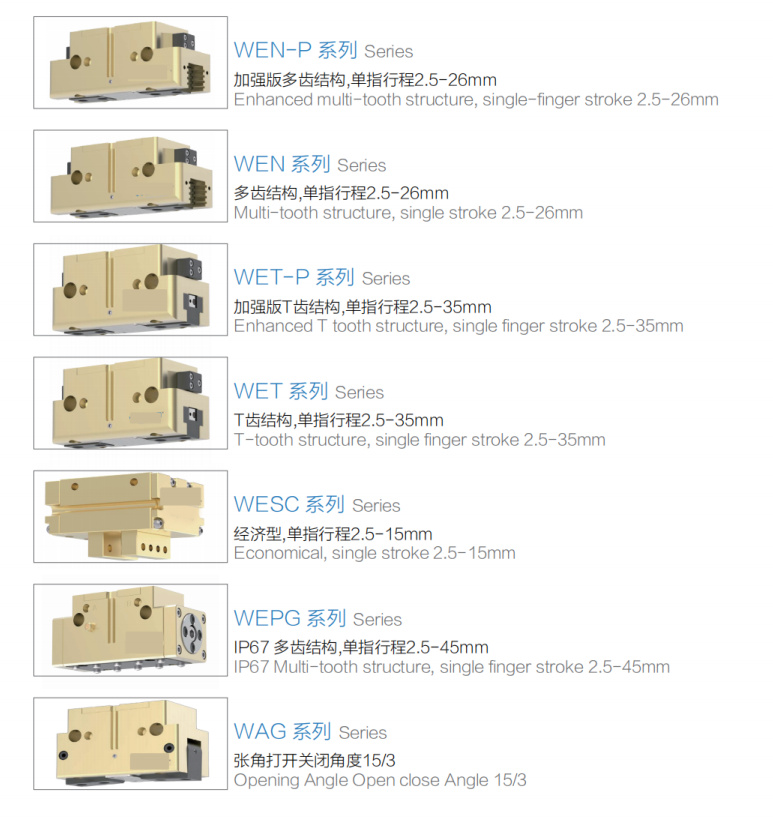

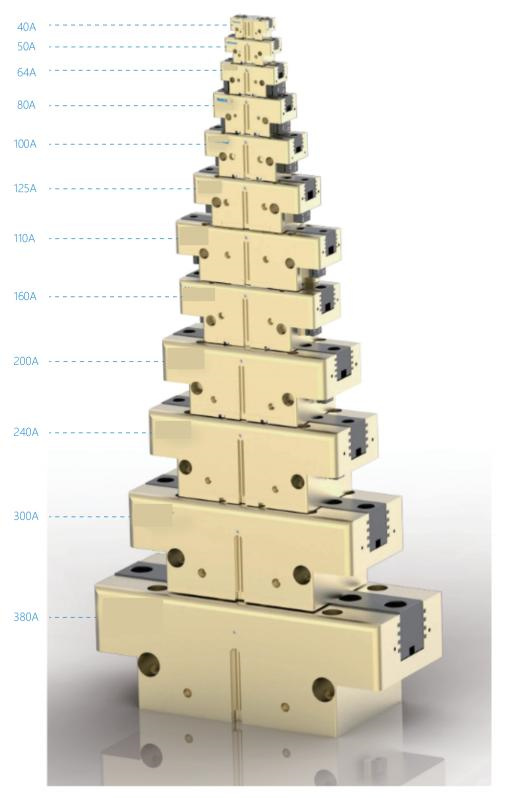

More than 400 kinds,function expansion combination.

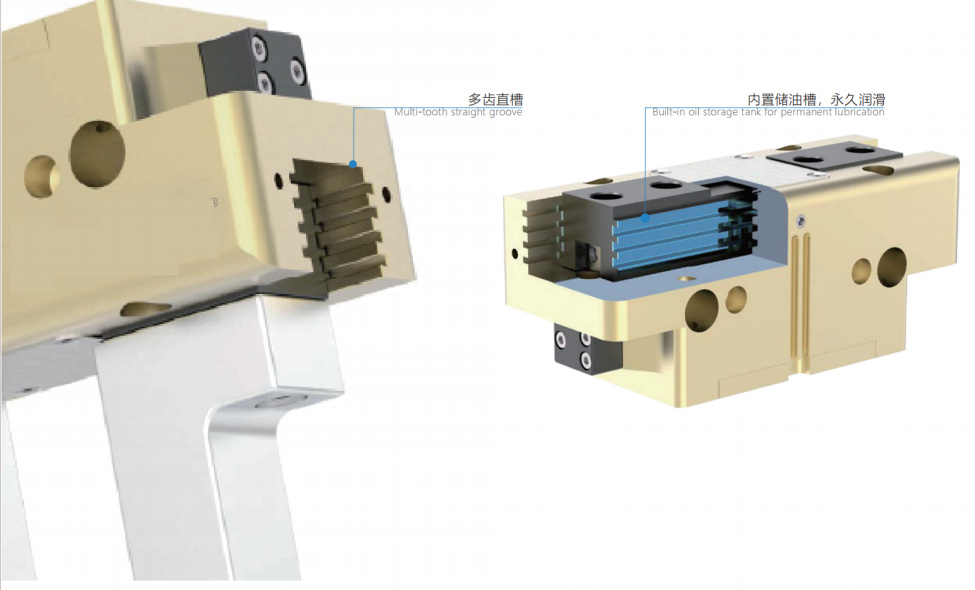

(1)refers to translational /multi-tooth structure Compact structure, can be used for short stroke, heavy load Distribute the load to more surfaces, reducing the contact stress Grease can be distributed more quickly and evenly It can guarantee sufficient motion rigidity and precision for a long time Multi-tooth guide rail oil storage structure, prolong the service life Finger length can increase at most 50%
Excellent performance

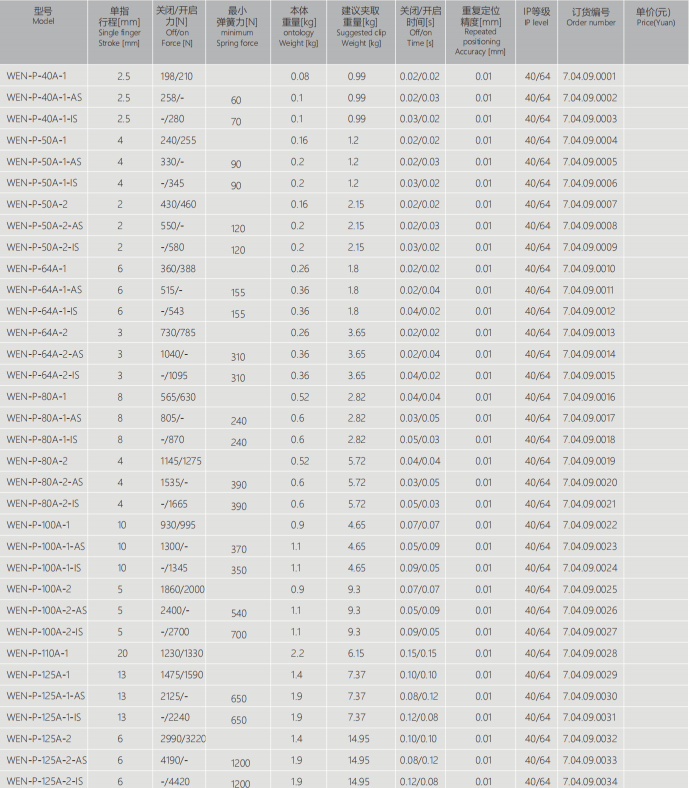

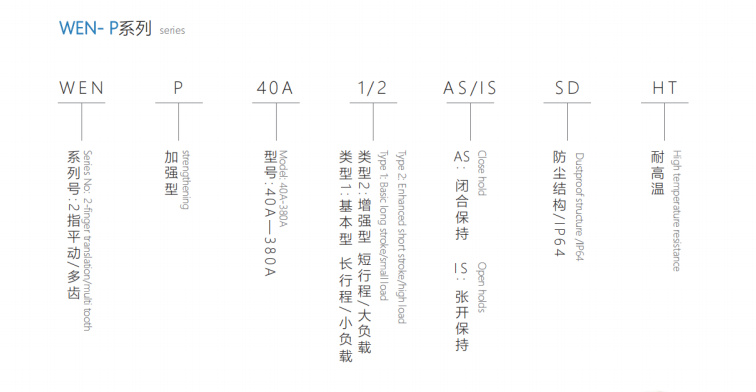

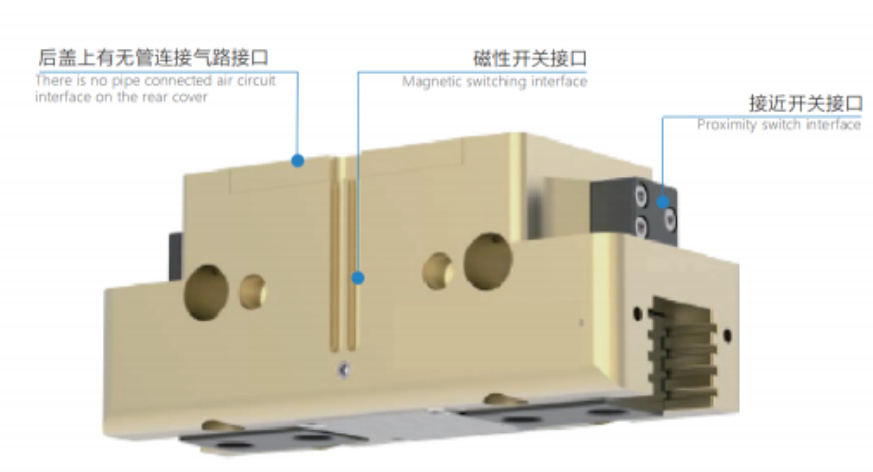

WEN-p series all grippers, a variety of sensor interface, gas interface
AS/lS Grab force holding device -AS/lS
All jaws of WEN-P series can be equipped with grasping force holding device, which can be extended into WEN-P-A S/IS,(As: closed holding lS: open holding).

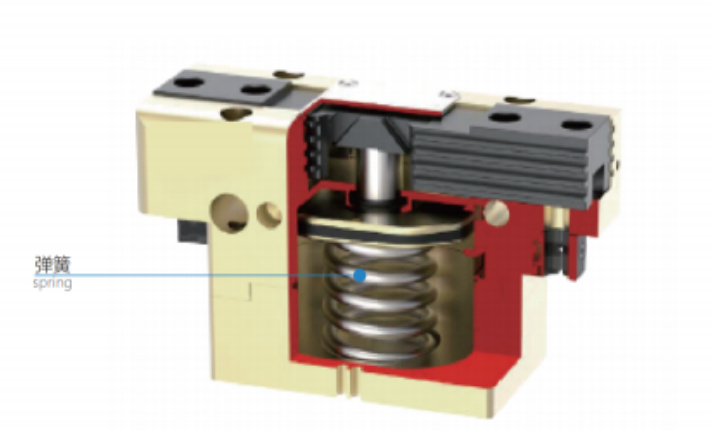

With the spring as the holding accumulator, the holding device can ensure the minimum holding force even if the pressure drops
Dust proof structure -SD
All jaws of WEN-P series can be equipped with dust-proof structure, which can be expanded into WEN-P-SD to reach iP64 level
WEN-P series all grippers, can be optional high temperature configuration, expand into WEN-P-HT, temperature range from the basic type 5/90 ℃，went up to 5/130°c
