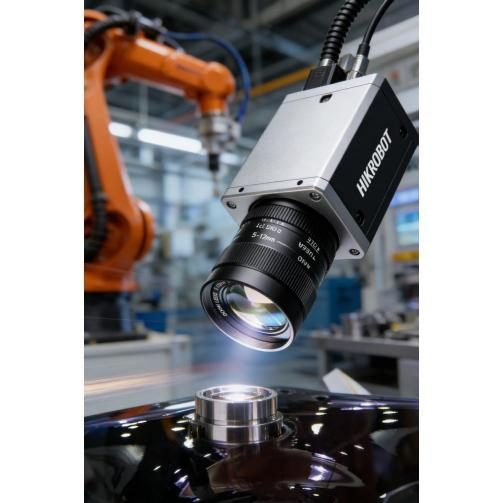

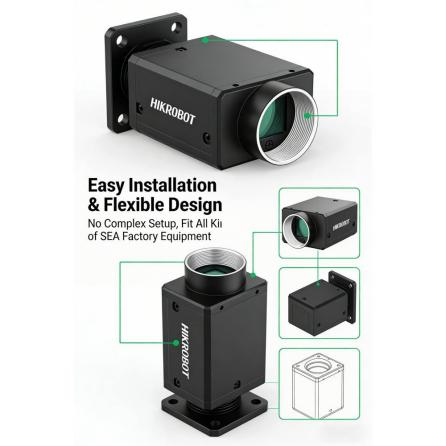

HIKROBOT 25MP 1.1″ CMOS USB3.0 Industrial Area Scan Camera
The HIKROBOT 25MP 1.1" CMOS USB3.0 Industrial Area Scan Camera is a high-performance imaging device designed for demanding machine vision applications. Featuring a 25-megapixel 1.1-inch CMOS sensor and global shutter, it delivers sharp, high-resolution images at up to 15 fps, ensuring clear capture of fast-moving objects. With a reliable USB3.0 interface, it provides stable and high-speed data transmission. The compact industrial housing supports integration into various automated systems, making it ideal for precision inspection, electronic component alignment, logistics sorting, and quality control in manufacturing lines.
General Specifications
- Brand: HIKROBOT
- Type: Industrial Area Scan Camera
- Resolution: 25 MP
- Sensor Type: 1.1" CMOS
- Interface: USB3.0
- Pixel Size: 3.45 μm × 3.45 μm
- Frame Rate: Up to 15 fps at full resolution
- Shutter Type: Global Shutter
- Output Format: Mono / Color (Bayer)
- Operating Temperature: 0 °C ~ 50 °C
- Power Supply: 5 V DC (via USB)
- Dimensions: Compact industrial housing
Applications: Machine vision, quality inspection, logistics sorting, electronics assembly
