High energy density, high load Linear Module LCE Series
- High speed, high efficiency
- position ingrepeatability of 10.02 mm and can perform well foaccurate positioning at high speed.
- High energy density, high load
- Programmable parameters,a variety of motion modes
- High linear accuracy
- Heavy Load, Highly rigid structural design with a maximum load of 55kg
- Long Stroke, Maximum stroke up to 800mm, Multiple Exercise Modes, Position, speed and thrust parameters are adjustable to realize the functions of pushing, pulling, pressing and positioning.
1,Compact design
Integrated design of motor, drive, and controller.Compact design with minimum width of only 35 mm.
The availability of several installation options ensures simple and quick deployment in a confined space.
2,High linear accuracy
It is driven by a high-accuracy ball screw.A steel ball is strictly selected to effectively control the clearance of the ball screw so that the high accuracy requirement can be easily met. The positioning repeat ability can be up to ± 0.003 mm.
3,Programmable parameters, a variety of motion modes
The position, speed, and thrust parameters are programmable to implement essential functions of pushing, pulling, pressing, and positioning at high speed. Either the position mode or pushing & pressing mode is available.
4,High speed, high efficiency
The use of high-performance servo motor and precise ball screw reduces the movement time on the sliding table and improves the movement efficiency with maximum speed up to 1000 mm/s and maximum acceleration up to 3000 mm/s2.
5,High energy density, high load
High rigidity structure design. A high-performance linear guide is used with load capacity leading commercially available competing products. The maximum load in the horizontal direction can reach 15 kg

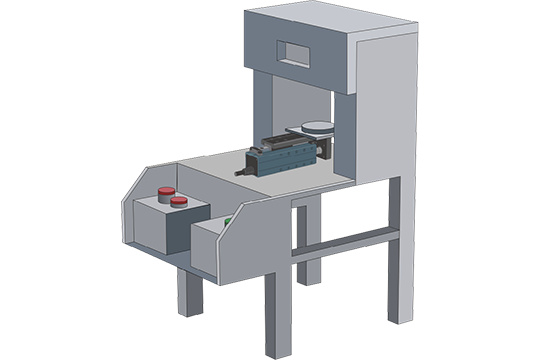

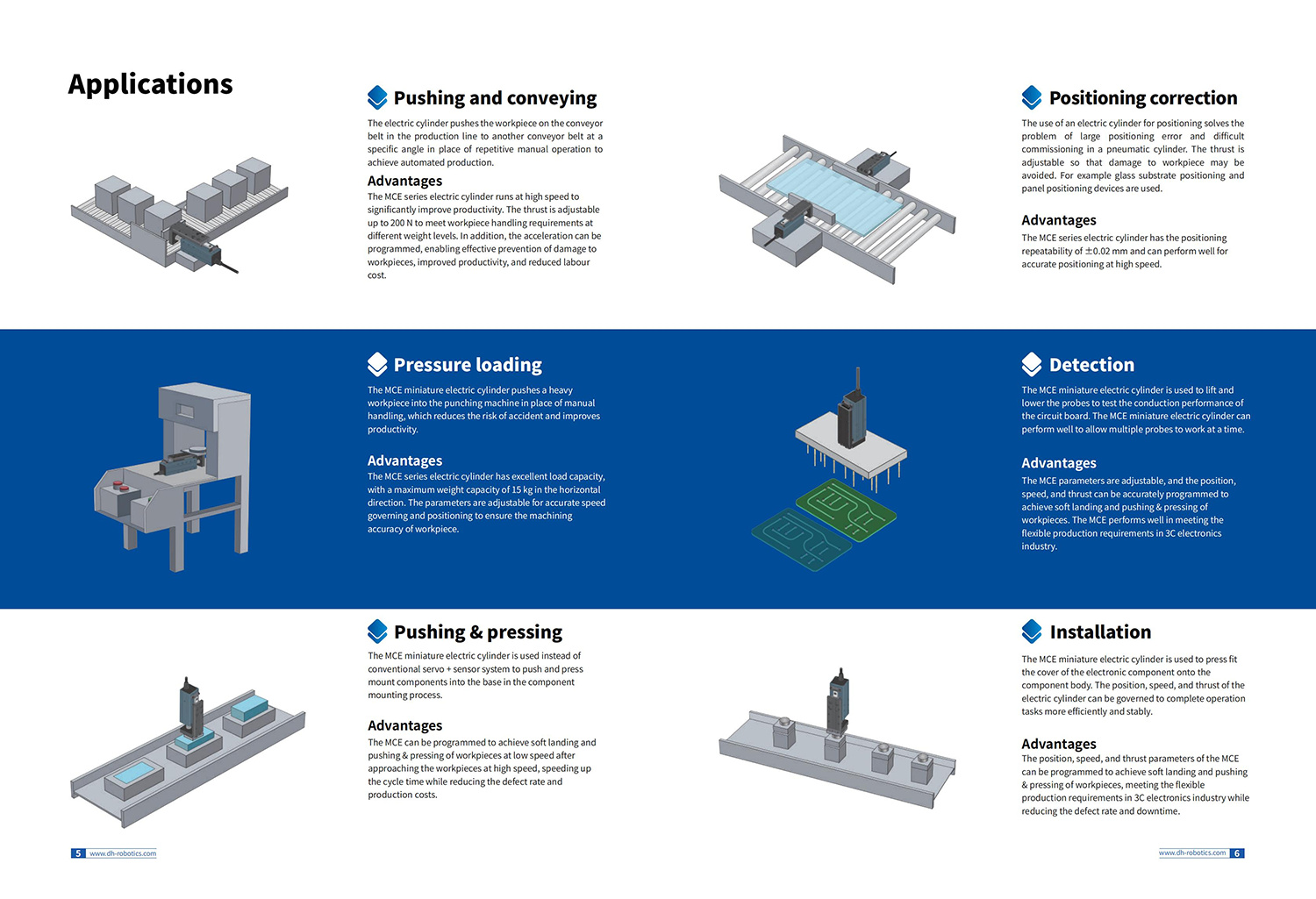

Automotive and auto components Industry
Automobile interior parts assembly; automobile engine parts pallet delivery; engine block parts inspection; automobile axle parts axle ring press fitting; battery container delivery, etc.
