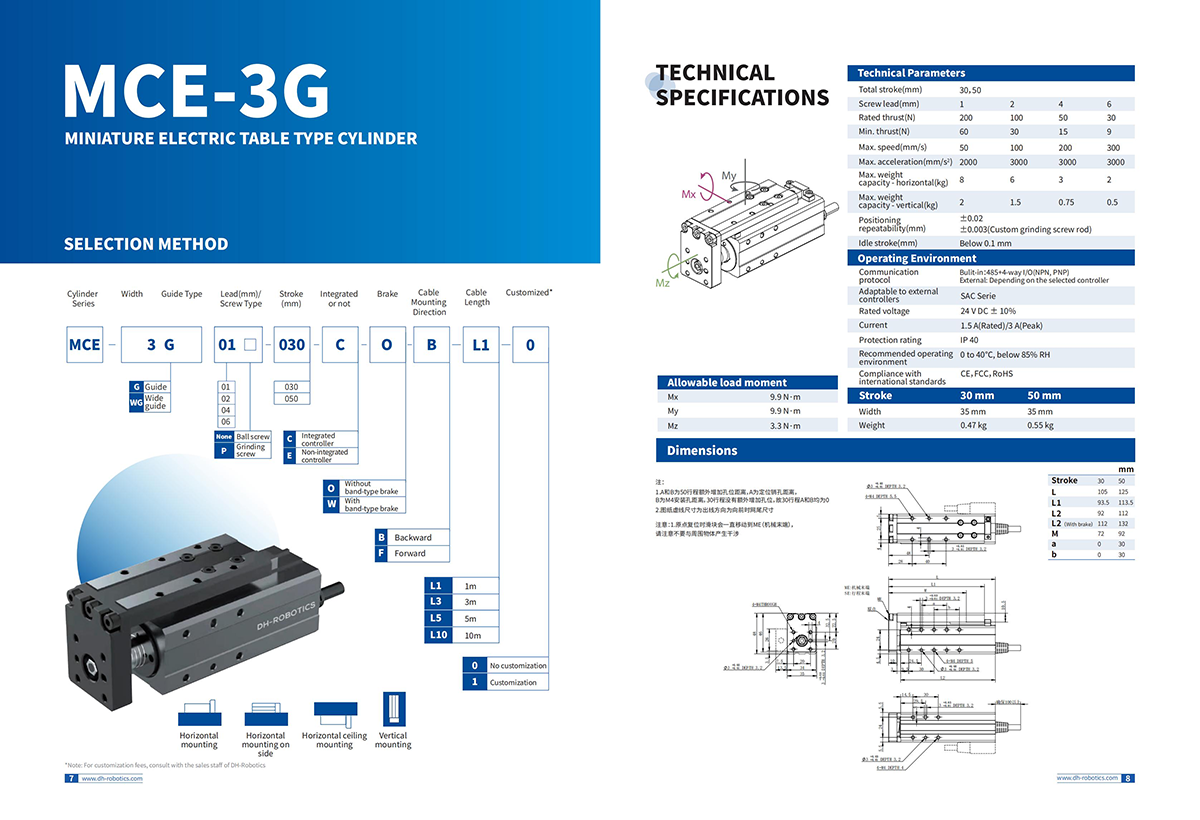

Miniature Electric Table Type Built-in controller Cylinder MCE series
High energy density, High load
MCE series electric cylinder provides big thrust force which reach 100 N and 200 N. The max load of MCE series cylinder could reach 12kg
Adjustable parameters and comprehensive functions
The thrust force, position, and speed parameters are adjustable to meet the basic functions of pushing, pulling, pressing, and positioning at high speeds. It can also be used with jigs or related mechanisms to complete complex tasks such as picking and placing,arranging, and transporting, with stable and excellent performance.
Compact design, small size and space saving
The controller is built-in and can be directly connected to the PLC. The structure is compact, and the width of the body is only 35mm. It supports multi-sided installation and can be deployed in small spaces simply and quickly.
1,Compact design
Integrated design of motor, drive, and controller.Compact design with minimum width of only 35 mm.
The availability of several installation options ensures simple and quick deployment in a confined space.
2,High linear accuracy
It is driven by a high-accuracy ball screw.A steel ball is strictly selected to effectively control the clearance of the ball screw so that the high accuracy requirement can be easily met. The positioning repeat ability can be up to ± 0.003 mm.
3,Programmable parameters, a variety of motion modes
The position, speed, and thrust parameters are programmable to implement essential functions of pushing, pulling, pressing, and positioning at high speed. Either the position mode or pushing & pressing mode is available.
4,High speed, high efficiency
The use of high-performance servo motor and precise ball screw reduces the movement time on the sliding table and improves the movement efficiency with maximum speed up to 1000 mm/s and maximum acceleration up to 3000 mm/s2.
5,High energy density, high load
High rigidity structure design. A high-performance linear guide is used with load capacity leading commercially available competing products. The maximum load in the horizontal direction can reach 15 kg

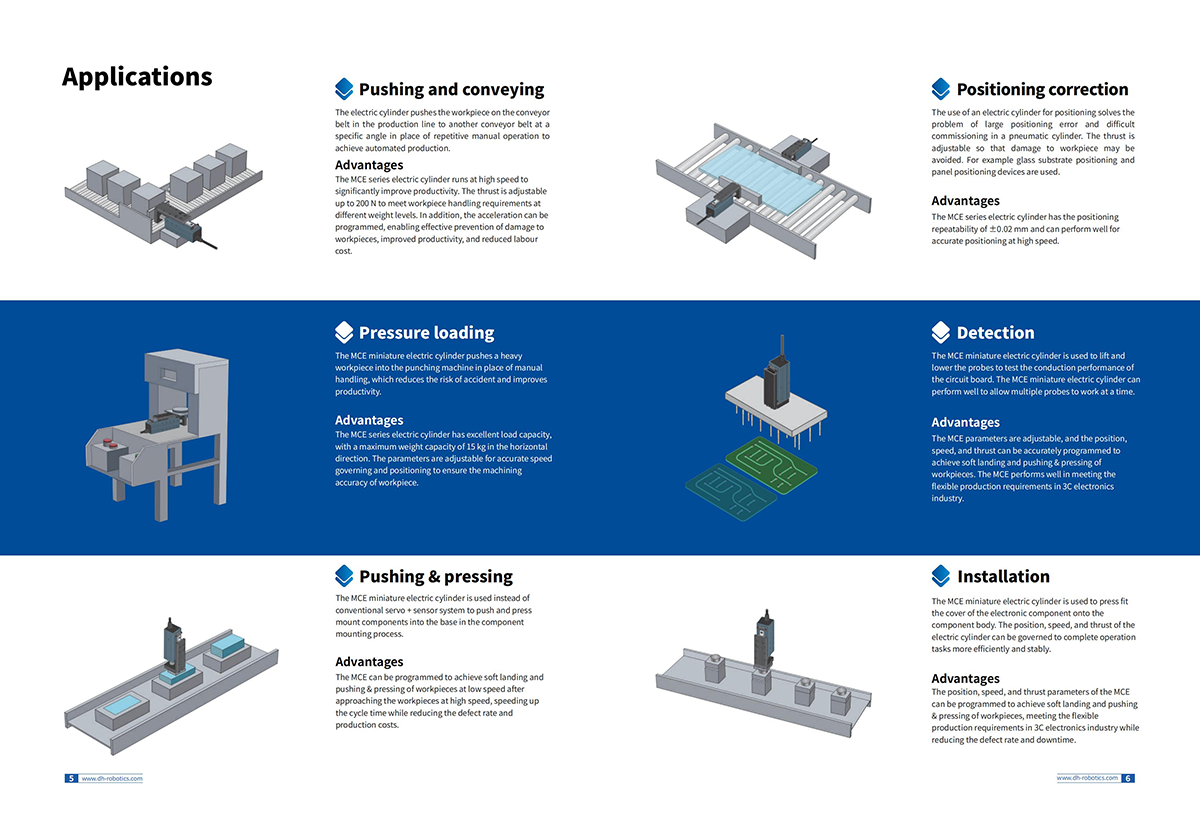

Automotive and auto components Industry

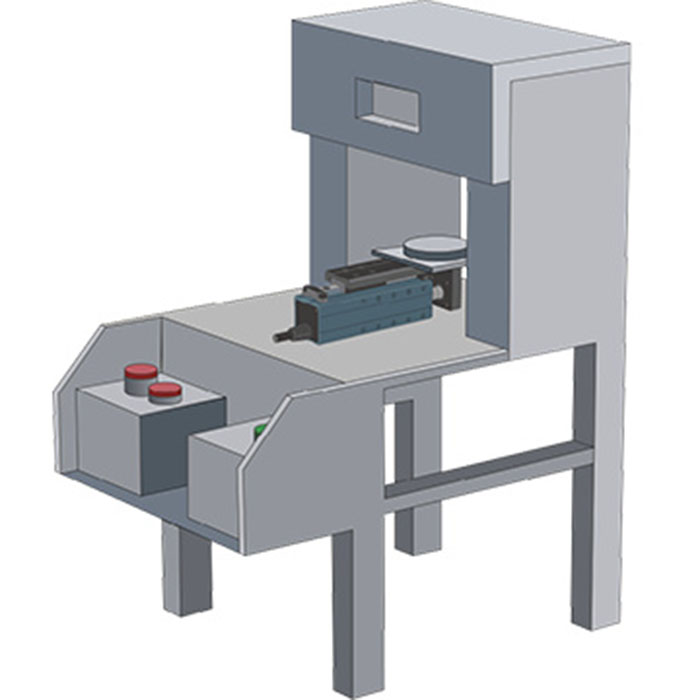

Automobile interior parts assembly; automobile engine parts pallet delivery; engine block parts inspection; automobile axle parts axle ring press fitting; battery container delivery, etc.
Food & Pharmaceutical Industry

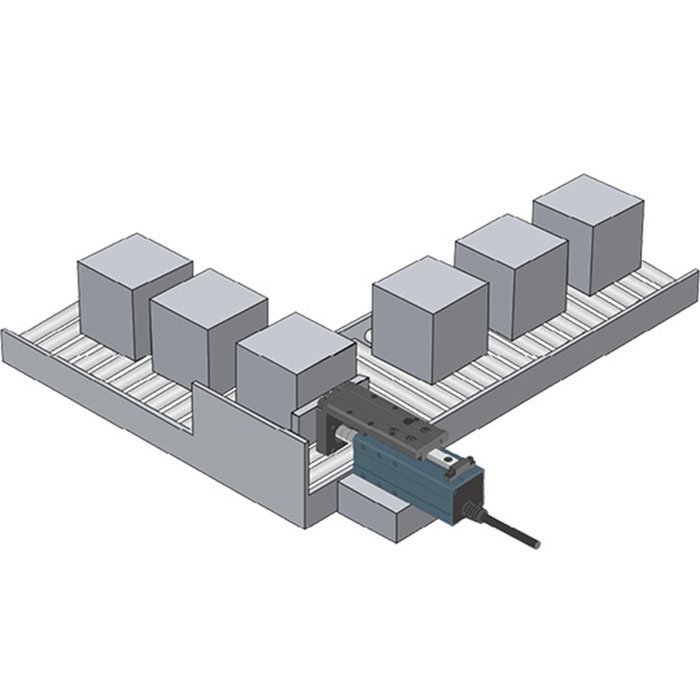

Food and medicine box appearance inspection and defective product sorting; food stacking, arranging or transferring, etc
