KWR200 Series Force Sensor for Robot Base Multi-dimensional force sensor with large range

Short Description:


Product Detail

Product Tags

● Product description

KWR200 series six-axis force sensor is a large-range multi-dimensional force sensor with built-in high-precision embedded data acquisition system, which can measure and transmit forces and moments in three directions in real time. The product material is high-strength alloy steel, with compact structure and strong bending resistance. It has been applied to the base of collaborative robots and the end of large industrial robots, and has achieved good application results.

1. Built-in high-precision embedded data acquisition system

2. Large range six-axis force sensor

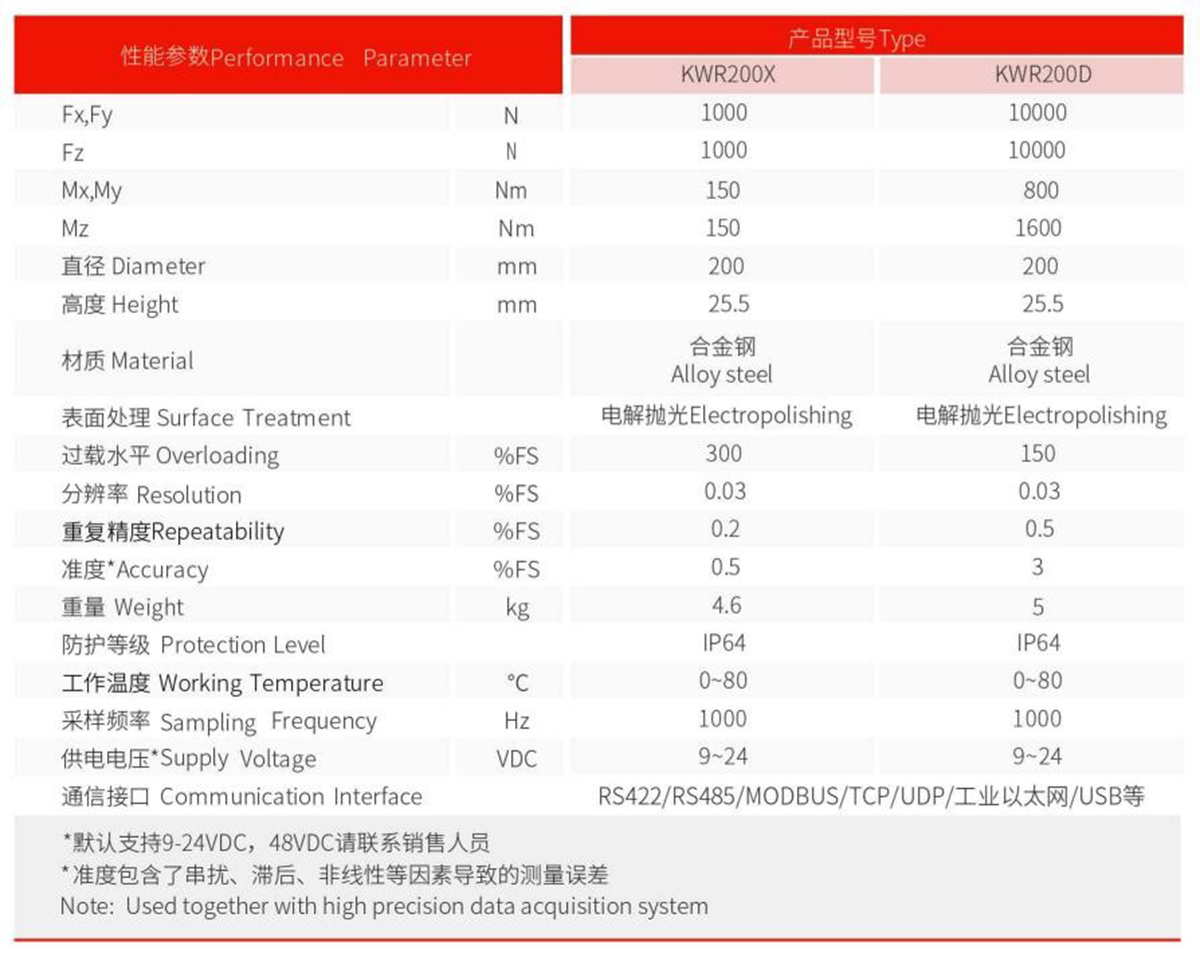

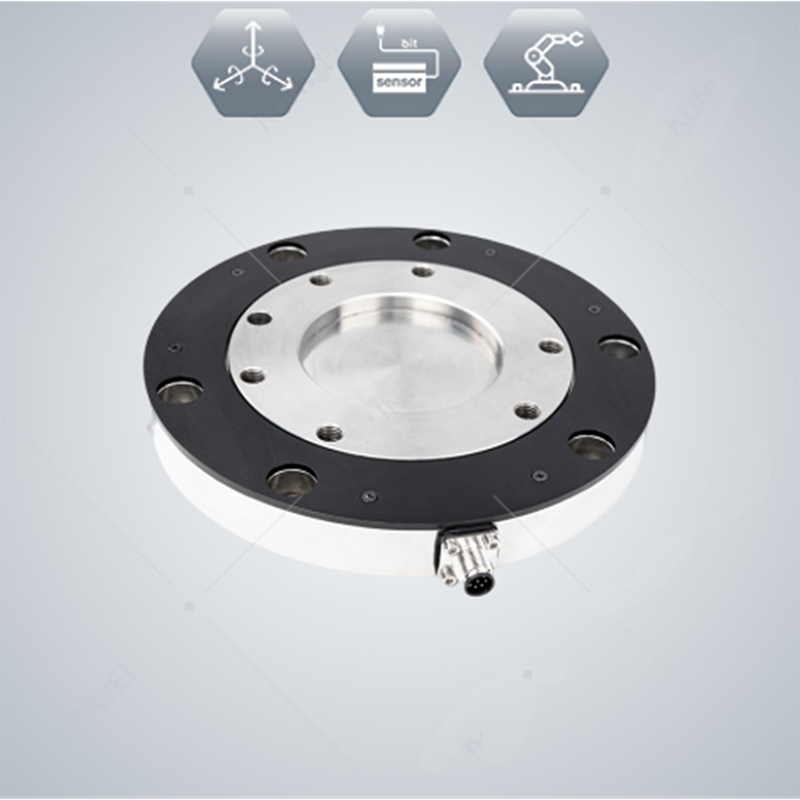

KWR200 Series2
KWR200 Series1

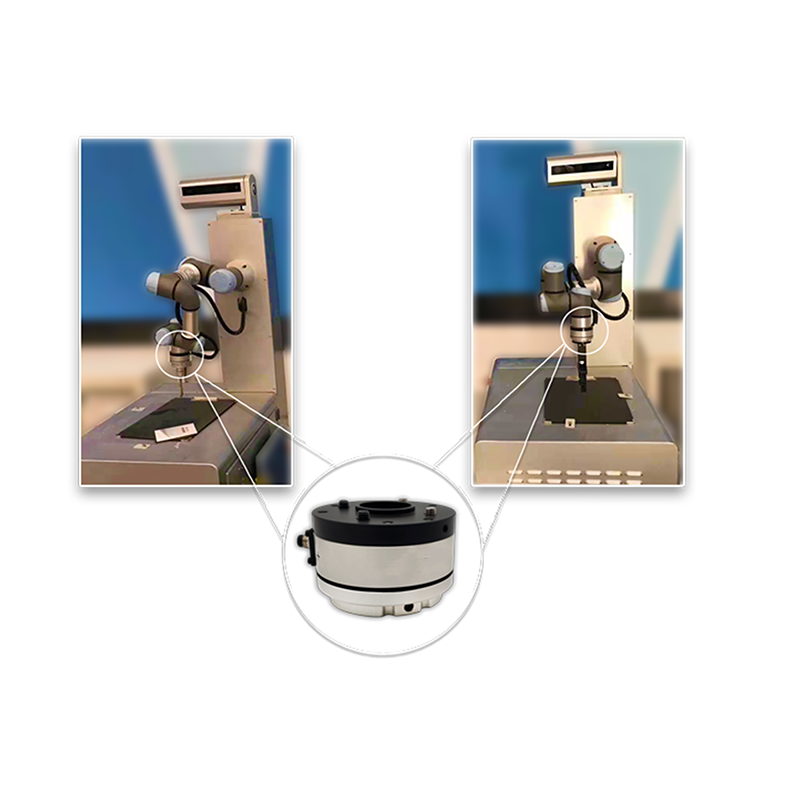

KWR200 Series5
KWR200 Series2

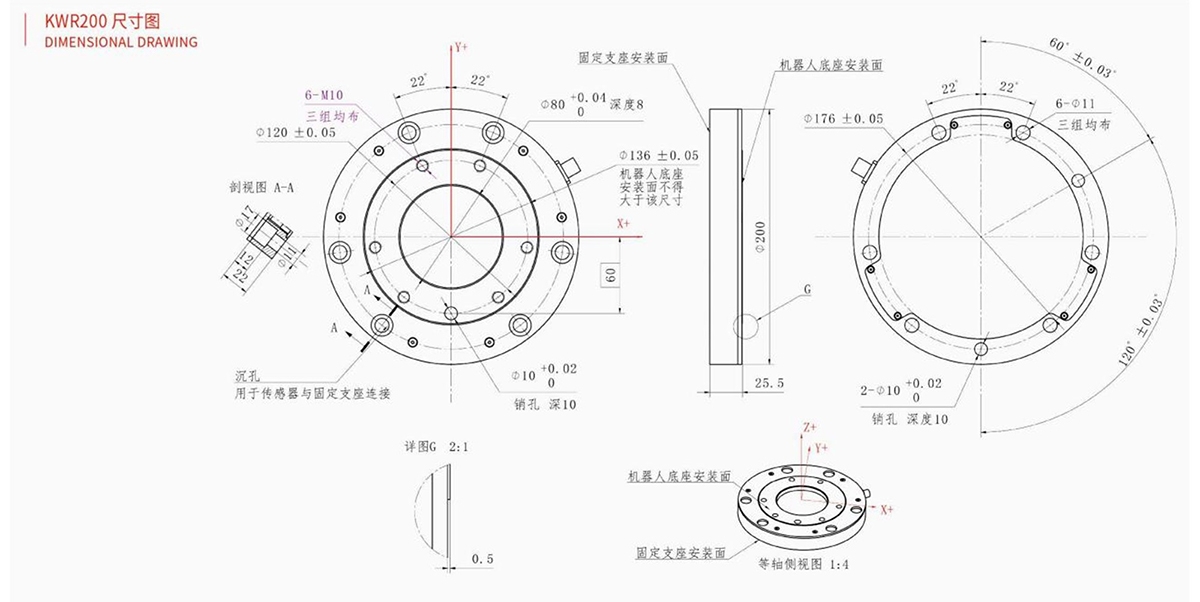

KWR200 Series4
