Measure force and torque in six dimensions Six-Axis Force Torque Sensor CZ-KWR36

Short Description:

Product Detail

Product Tags

KWR36 series1
KWR36 series2


KWR36 series six-axis force sensor is a miniature high-precision force sensor that can measure force and moment in three orthogonal directions in real time. The sensor is designed based on the principle of strain electrical measurement, and uses six-axis joint calibration technology to improve accuracy. The product can be adapted to a variety of signal acquisition modules , and is often used in medical surgery, scientific research, industrial automation and other fields.

1,Six-axis Joint Calibration,Fully Suppress CrosstalkMicro

2,High Precision Six-axis Force Sensor

3,Aviation Alloy,High Overload,Rigidity and Sensitivity

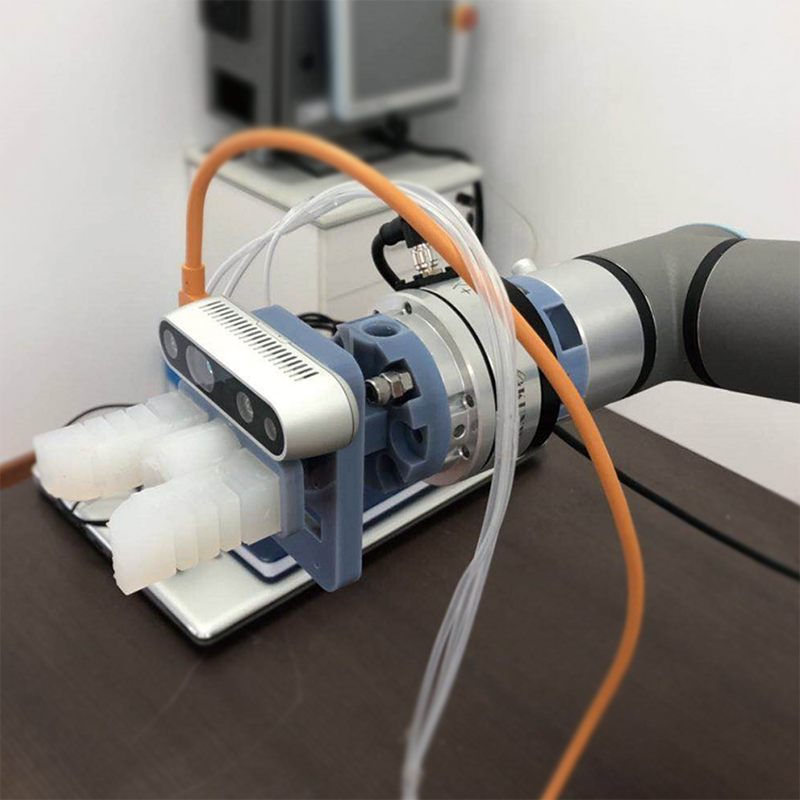

4,Suitable for collaborative robots, surgical robots, service robots


KWR36 series3
KWR36 series4
KWR36 series5
KWR36 series6
KWR36 series7
KWR36 series8
