● PRODUCT INTRODUCTION

KWR90 six-axis force sensor is a hollow multi-dimensional force sensor with built-in high-precision embedded intelligent circuit, which can measure and output force and torque in three directions in real time. The product adopts an integrated design and uses the form of internal wiring, which can be led directly from the inner cavity of the customer's equipment to improve the design aesthetics of the product appearance.

1. Built-in high-precision embedded data acquisition computing system
2. Hollow six-axis force sensor
3. Six-axis joint calibration, fully suppress crosstalk
4. Integrated design, internal wiring
5. Using aviation alloy, high overload, high rigidity and high sensitivity

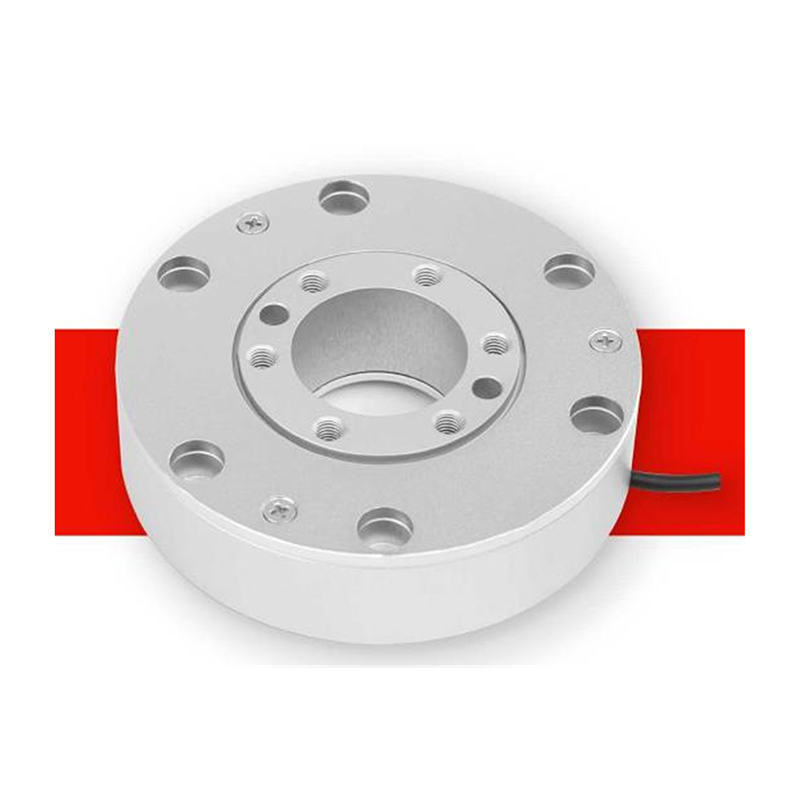

KWR90 series1

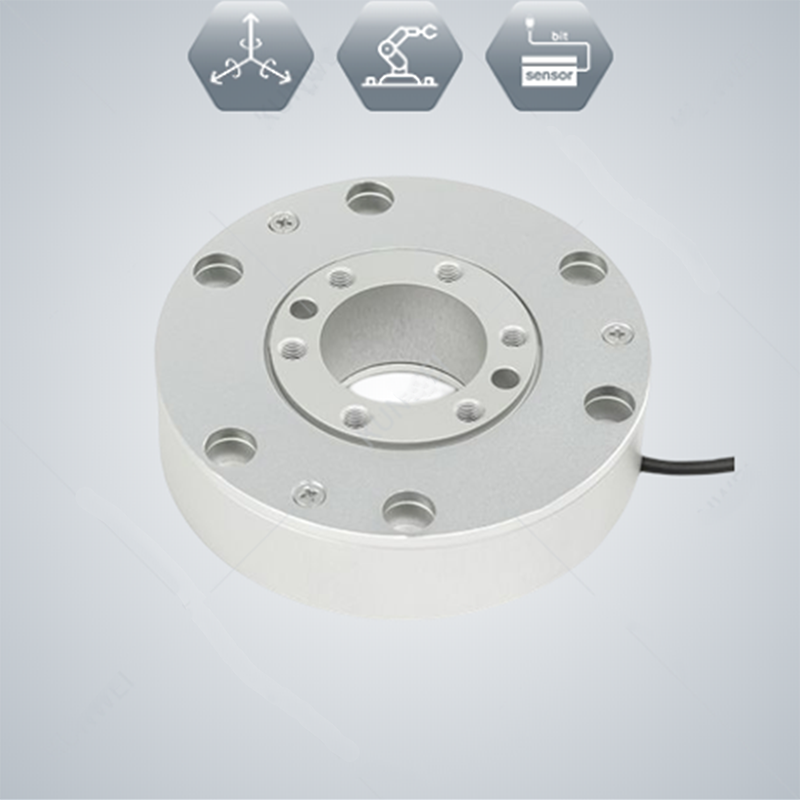

KWR90 series2

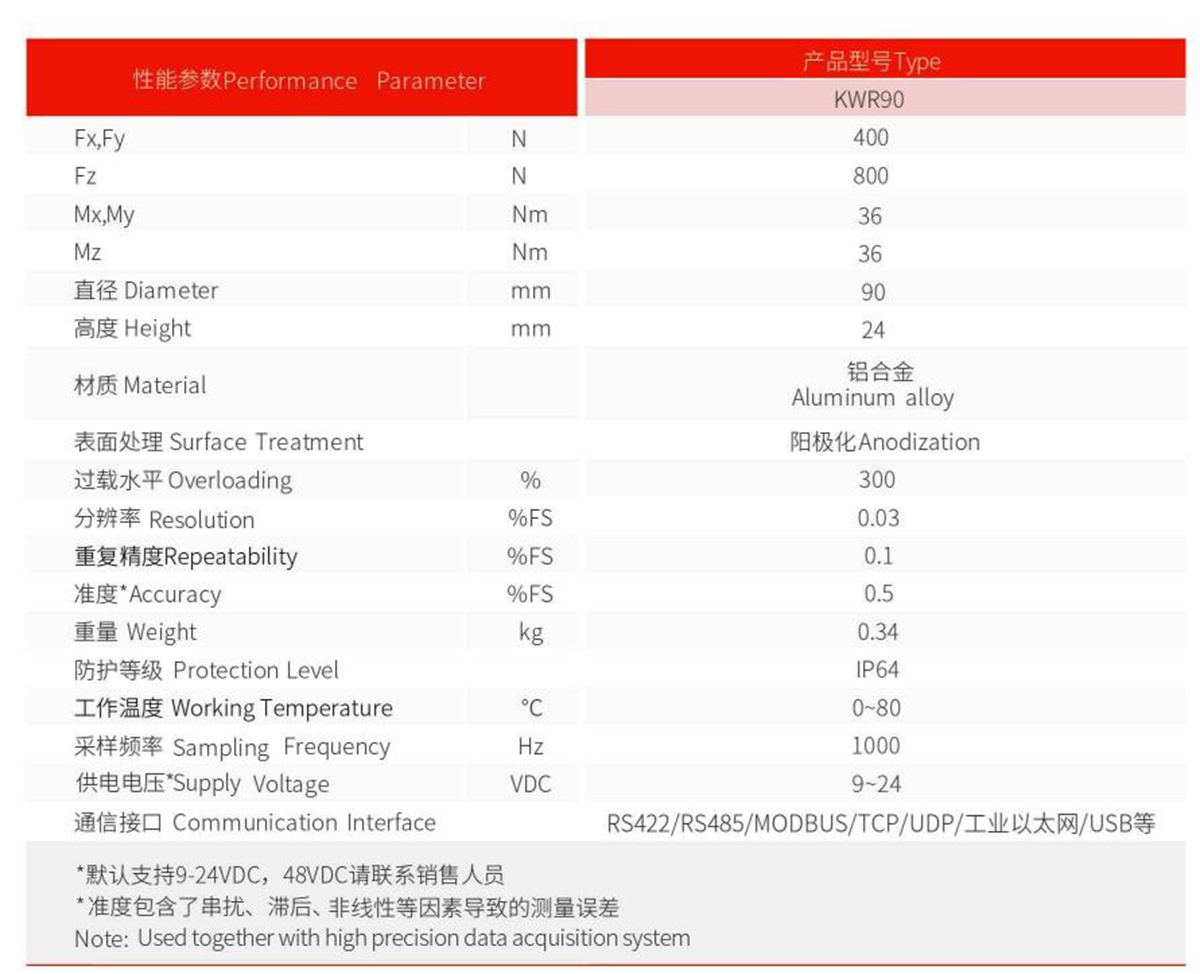

KWR90 series3

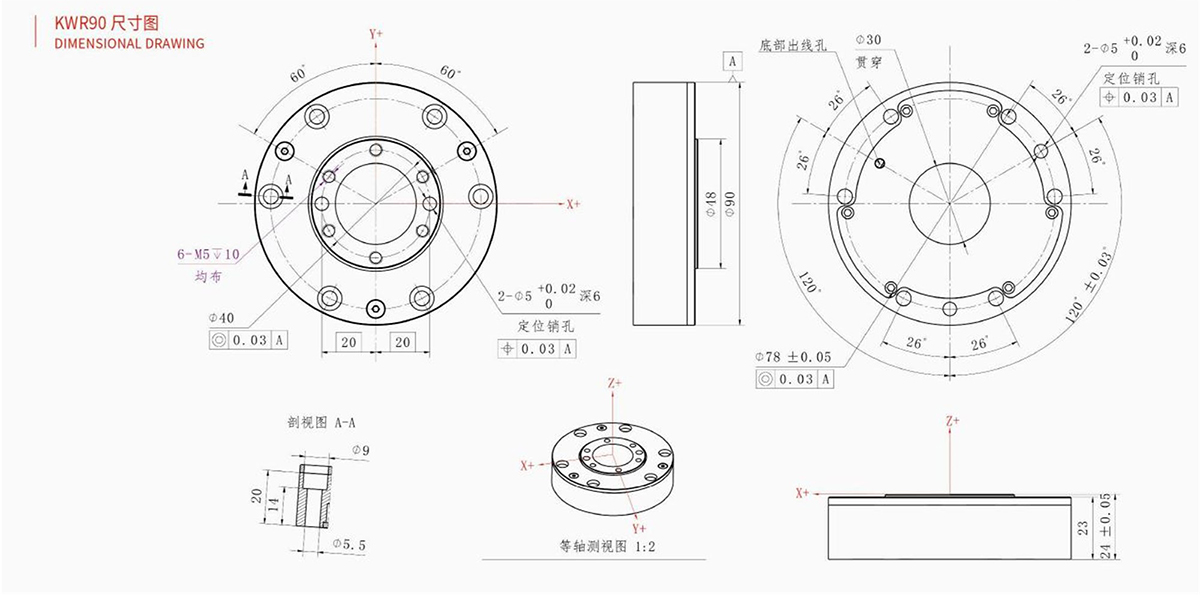

KWR90 series4

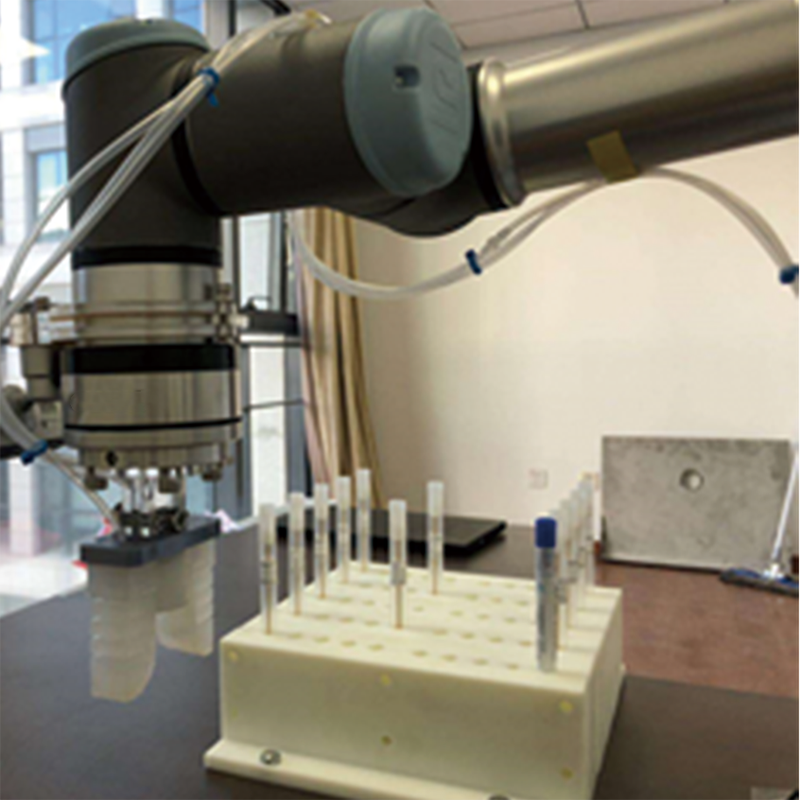

KWR90 series5

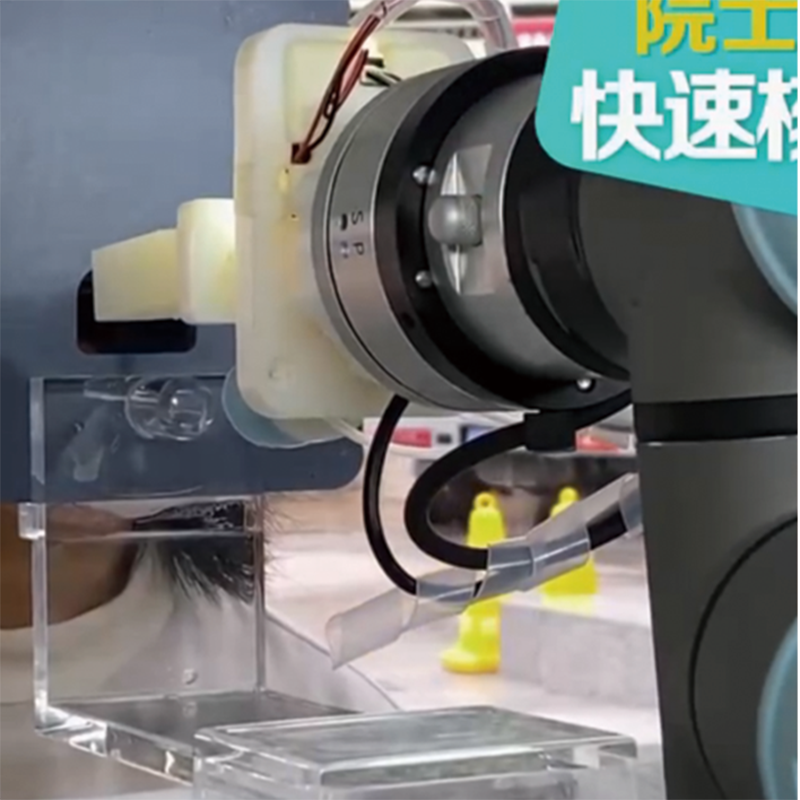

KWR90 series6
